[Device List] It contains all device information connected to the system. You can perform single, multiple, and grouping management operations on the device.
3.1.1 Parameter settings

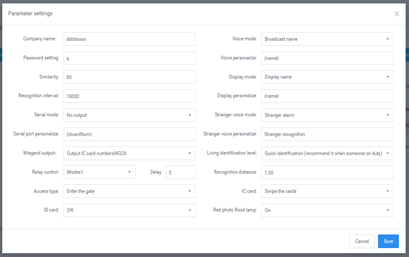

Select the specified device in [Device List] and click Parameter settings to configure the parameter information of the device, as shown in the figure below:
Select the device in [Device list] and click "Shutdown", "Restart", and "Reset" under "Power Control" to remotely shut down, restart, and reset the device.
Select the device in [Device list], or select the group, and click "Body temperature detection" to set the parameters of temperature detection: temperature detection switch (default on), alarm threshold (default 37.3) and alarm switch, compensation temperature (default + Value 0.3) and mask settings (default off).
Select the device in [Device list] and click
"More-Client upgrade" to enter the device
software upgrade page. On this page, you can see the list of uploaded device software. Select the software version of the device to be upgraded and click the upgrade button to complete the device software upgrade operation. It supports online and offline upgrade operation.

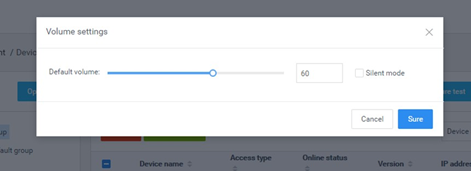

1） General settings: Select the device in the [Device List] and click "More-Volume setting" to set the volume of the selected device. The volume value can be set between 0-100 and the default is 20.2) Silent settings: Select the device in [Device list], click "More-Volume setting", and select "Silent mode" in the pop-up tab

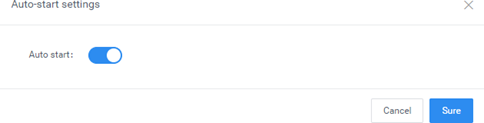

Auto-start: When enabled, the application will start at start-up, and when it is closed, it will not start at start-up. In [Device list], select the devices that need to be set to start automatically, and click the "More-Auto-start" button to enable or disable this function.
After corresponding to the device records in [Device list], click the "Open the door remotely" button to open the corresponding gate.
device to be deleted in the [Device list] and click the "Delete"
button to complete the delete operation. Only offline devices are supported. It
supports single or multiple device operations.

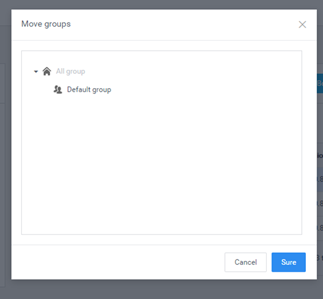

In [Device list], select the devices that require mobile grouping, and click "Mobile Grouping". In the pop-up window, select the target group you want to move to, and you can complete the group move operation after you confirm it. It supports single or multiple device operations.
The device details include basic information, device
settings, and remote operations.
· Device information: You can view and modify device parameter information, display settings, and other settings.
Device operation: restart, shutdown, reset, and remote door opening.
Device monitoring includes two parts: real-time monitoring and log monitoring.

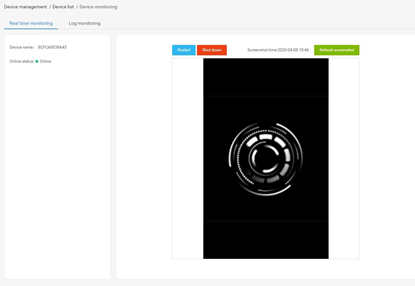

Real-time monitoring: You can view the device name and online status, and load and display the current screen of the device. You can also restart and shut down
· Log monitoring: View related operation logs of the device.

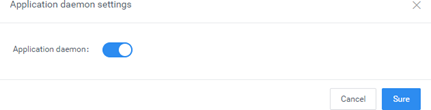

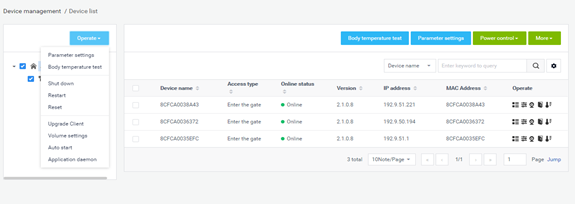

Batch operations can be performed in the device group by selecting the device group. It supports parameter setting, shutdown, restart, reset, client upgrade, volume setting, auto start and application daemon for the entire device group, as shown below:
If there is no
device under the selected group, a prompt will pop up: there is no device under the selected
group, please select again. If there are devices under the selected group, the
original settings will be overwritten after the batch setting is prompted.
Device grouping uses structure grouping by default. Each user group has a default device group. You can add, modify, and delete device groups on the user group. The operation is similar to the user grouping in [Group structure].

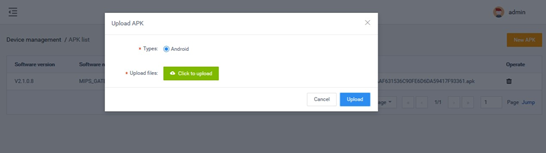

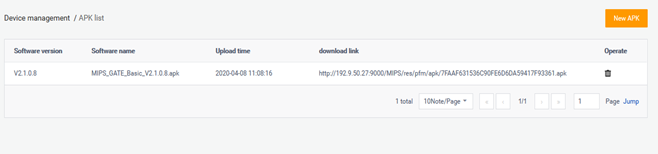

[APK list] The page contains client software list information and software version upload and delete operations.
